• PIAA RF Series 10" LED Light Bar Hybrid Beam Single, SAE Compliant - 16-07110
  • PIAA RF Series 10
  • PIAA RF Series 10
  • PIAA RF Series 10
  • PIAA RF Series 10
  • PIAA RF Series 10
  • PIAA RF Series 10
  • Four 8W LEDs for low power draw
  • Reflector Facing Technology puts more light where the driver needs it
  • 6000K White Color Temperature to replicate daylight
  • 10G vibration validated to withstand the most rugged terrain
  • SAE Compliant in Driving Pattern
  • *Wiring harness not included

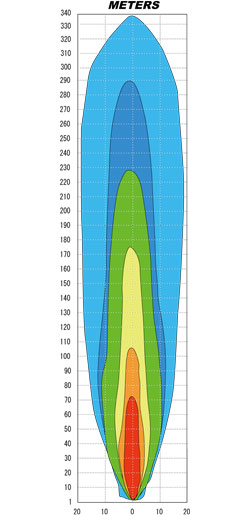

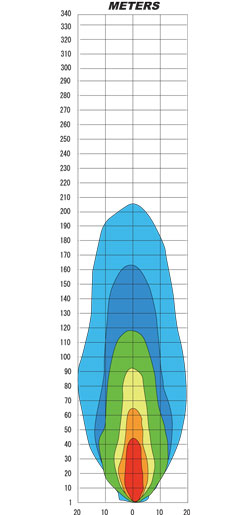

Drive Beam Fog Beam

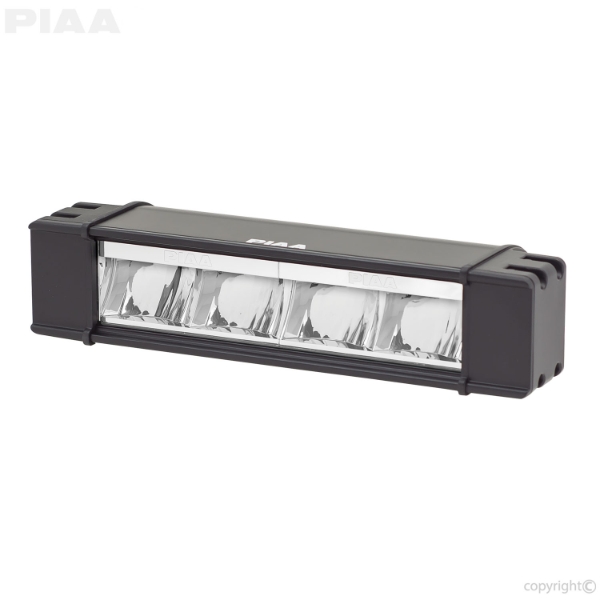

PIAA RF Series 10" LED Light Bar Hybrid Beam Single, SAE Compliant

The PIAA RF10 ten inch LED light bar features Reflector-facing LEDs that project off of an ingenious computer-designed multi-surface reflector offering more  illumination than forward facing LED lights. Bulb Type: Four 8 watt LED bulbs, with 6000K color temperature for a pure white output. The low profile design is made up of a cast aluminum housing with high strength poly-carbonate lens. The modular mounting design allows for all RF Series lamps to be connected together to achieve desired length for a wide range of applications.

PIAA’s advanced Reflector Facing Technology (RFT)

PIAA wanted to perfect LED lighting when we designed rearward-facing bulbs and new “first-in-the-industry” reflector technology. The innovative design offers significantly improved lighting and beam control compared to conventional LED and halogen lamps with forward-facing bulbs. The result is greater visibility for drivers.

Key to achieving these performance advantages is PIAA’s advanced Reflective Facing Technology (RFT). PIAA’s exclusive computer-designed, multi-surface reflector concentrates and focuses the beam pattern of the rearward-facing LED bulbs more precisely than forward-facing LED lamps. RFT is featured in PIAA’s LP Series and RF Series LED lights.

Both series of PIAA LED lamps provide brilliant illumination, but with lower power consumption than conventional LED and halogen lamps. They light the road with brilliant white 6000k color that is clearly visible to oncoming traffic, providing an added measure of driving safety. The lamps are compact and durable, with the cast aluminum housings and polycarbonate lenses.

PIAA LED RFT Technology» More Light Per-Watt Than The Competition
» Focused Beam Pattern in fog or driving
» Maximizes Light to Conserve Amp Draw
» More Light Where You Need It

PIAA LED light bars are different from every other light bar out there. The RF Series feature Reflector Facing Technology (RFT) that concentrates and focuses beam pattern of the reflector-facing LED bulbs more precisely than forward facing LED lights. This allows for a true, controlled beam pattern, along with more light output per watt versus the competition.

PIAA RF LED Lightbar E Series Onyx

PIAA RF LED Lightbar E Series Onyx

PIAA RF 10" Light Bar - DrivingCompetitor Dual Row - SpotCompetitor Single Row - Spot
4 LEDs20 LEDs4 LEDs
Wattage: 32Wattage: 65Wattage: 42
Color: 6000kColor: 6000kColor: 5000k

RF Series LED Light Bar Video

  • One RF10 LED hybrid light bar
  • Installation Instructions
  • Mounting Brackets and Hardware
  • *Wiring harness not included
