PIAA’s advanced Reflector Facing Technology (RFT)

PIAA wanted to perfect LED lighting when we designed rearward-facing bulbs and new “first-in-the-industry” reflector technology. The innovative design offers significantly improved lighting and beam control compared to conventional LED and halogen lamps with forward-facing bulbs. The result is greater visibility for drivers.

Key to achieving these performance advantages is PIAA’s advanced Reflective Facing Technology (RFT). PIAA’s exclusive computer-designed, multi-surface reflector concentrates and focuses the beam pattern of the rearward-facing LED bulbs more precisely than forward-facing LED lamps. RFT is featured in PIAA’s new 530LED Series lamps and new 570LED Series lamps.

Both series of PIAA LED lamps provide brilliant illumination, but with lower power consumption than conventional LED and halogen lamps. They light the road with brilliant cobalt-blue color that is clearly visible to oncoming traffic, providing an added measure of driving safety. The lamps are compact and durable, with the cast aluminum housings and polycarbonate lenses.

 PIAA LED RFT Technology

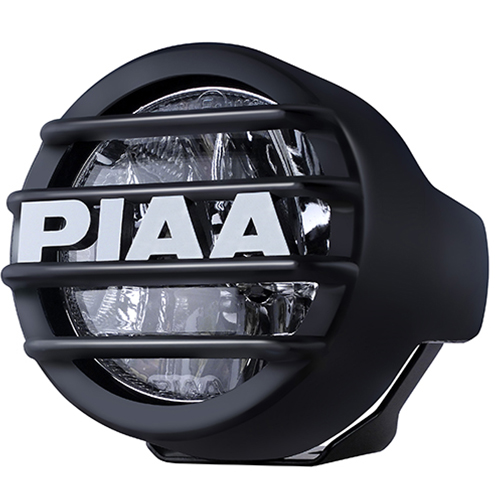

LP530 LED Lamps

New PIAA 530 LED 3-1/2" fog and driving lamps feature exclusive reflector-facing LED bulbs and a geometrically-perfect reflector to provide precise beam control and increased output compared with ordinary halogen bulbs. The LED bulbs are much more durable than halogen bulbs, provide more output and consume far less power. Available in Fog and Long Range Driving beam patterns. PIAA 530LED lamps have two 3-watt LED bulbs per lamp, which draws 0.5 amps per light. The outside diameter of the lens is 3½ inches. PIAA offers the lamps in fog and driving patterns for compact autos, jeeps, SUVs and motorcycles.


LP570 LED Lamp

The 570 LED’s were built with durability and performance in mind. They are SAE compliant, and will perform anywhere, anytime, in any condition. The lens on PIAA’s 570 lamp is made of polycarbonate plastic, and is paired up with lightweight, durable aluminum housing. Inside the lamp there are two 5 watt LED bulbs along with an 8 watt circuit board that consumes only 1.5 amps per lamp while running on 12 or 24 volt power. The bulbs are a brilliant 6000 kelvin rating, which will give you tons of light output while maintaining that HID look. The 570 comes in a true driving pattern that minimizes stray light to give the user a precisely controlled beam pattern along with more useable light output than any other LED on the market. PIAA 570LED lamps are SAE compliant and come in a driving pattern. They feature two 9-watt LED bulbs and one electrical unit at eight watts per lamp (total of 18 watts per 570LED lamp at 1.5 amp draw). The lens’ outside diameter is 7-3/16 inches. PIAA offers the lamps for small trucks and off-road vehicles, including jeeps, SUVs and UTVs.
