• PIAA's Xtra Technology produces more light with stock power draw
  • Yellow beam color for improved contrast in foul weather
  • Compact Ultra Thin Housing
  • SAE Compliant Wide Range Fog beam pattern for superior visibility
  • Comes with stylish PIAA black mesh grill
Price: $299.00

Quantity:
Availability: In Stock
Usually ships In 1 Business Day

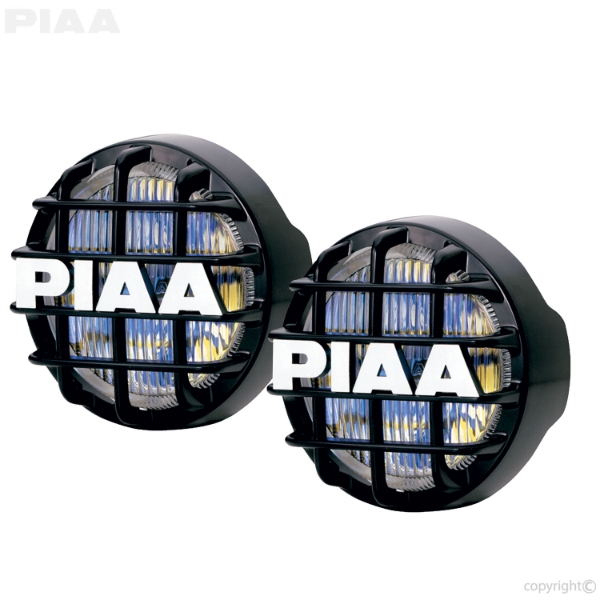

510 Ion Yellow Fog Halogen Lamp Kit


PIAA's Plasma Ion Fog light kit features a 55-watt bulb (85-watt output equivalent) that exceeds SAE standards. At only 4" in diameter, this kit is a natural fit for today's cars and trucks with round openings in the bumper or front spoiler. The black stamped steel housing and hardened quartz glass lens comes complete with two lights, a pre-assembled wiring harness which includes the relay and switch, and two black mesh covers. No cutting or splicing means this kit is easy to install. These lights are engineered to perform anywhere, at any time and in any condition and are backed by a limited lifetime warranty. PIAA's number one selling light series. The compact and ultra-thin housing provides for a multitude of applications. With its 4 inch diameter the 510 Series is a natural for today's cars and trucks with round openings in the bumper or grill.


REPLACEMENT PARTS





Halogen Lights Single Lamp Single Lens Replacement Bulb Wiring Harness Relay Switch
004XT Driving 412 30412 15213 34085 33086 30034
2000 Series Ion Crystal Fog 2011 32010 13555 34085 33086 30034
2000 Series Xtreme White Fog 2010 32010 15213 34085 33086 30034
2100 Series Xtreme White Driving 2112 32112 15213 34085 33086 30034
2100 Series Xtreme White Fog 2110 32110 15213 34085 33086 30034
40 Series Driving 4012 34012 13055 34085 33086 30034
410 Series Driving 4102 34102 19015 34087 33086 30034
510 Ion Crystal Fog 5101 35101 13455 34085 33086 30034
510 Super White Driving 5104 35104 13910 34085 33086 30034
510 Xtreme White SMR Fog 5110 35110 15213 34085 33086 30034
510 Xtreme White SMR Driving 5112 35112 15213 34085 33086 30034
510 Intense White ATP 5106 35106 15213
34085 33086 30034
520 Ion Crystal Fog Chrome 5201 35201 13085 34260 33260 30034
520 Ion Crystal Driving Chrome 5203 35203 13085 34260 33260 30034
520 Ion Crystal Fog Black 5211 35201 13085 34260 33260 30034
520 Ion Crystal Driving Black 5213 35203 13085 34260 33260 30034
520 Xtreme White SMR Driving Chrome 5204 35202 15213 34260 33260 30034
520 Xtreme White SMR Driving Black
5214
35202
15213
34260
33260
30034
520 Xtreme White ATP Black 5216 35206 15286 34260 33260 30034
525 Series Twin Beam 5258 35258 14561 34400 33086 30035
540 Ion Crystal Fog 5401 35401 13455 34085 33086 30034
540 Xtreme White Driving 5402 35402 15213 34085 33086 30034
580 Xtreme White Driving 5802 38302 15286 34260 33260 30034
RS800 Twin Beam Shock Lamp 8018 38018 14561 34088 33260 30035
1500 Series Back-up 1520 31520 13055 34046 33046 30022
2000 Series Back-up 2020 32010 13055 34046 33046 30022
LP Series LED Lights Single Lamp Single Lens Replacement Bulb Wiring Harness Relay Switch
530 White LED Fog 05300 - - 34070 - -
530 Yellow LED Fog 12-05300 - - 34070 - -
530 White LED Driving 05302 - - 34070 - -
530 Yellow LED Driving
12-05302 - - 34070
- -
550 White LED Driving 05502 - - 34071 33086 30034
560 White LED Driving
05602 - - 34071
33086
30034
570 LED Driving 05702 - - 34071 33086 30034
RF Series LED Light Bars Single Lamp Single Lens Replacement Bulb Wiring Harness Relay Switch
RF3 LED Flood 07320 - - 34071 33086 30034
RF3 LED Driving 07403 - - 34071 33086 30034
RF6 Yellow Fog 12-07206 - - 34071 33086 30034
RF6 White Fog 07006 - - 34071 33086 30034
RF6 White Hybrid 16-07106 - - 34071 33086 30034
RF6 White Driving 07406 - - 34071 33086 30034
RF10 Yellow Fog 12-07210 - - 34071 33086 30034
RF10 White Fog 07010 - - 34071 33086 30034
RF10 White Hybrid 16-07110 - - 34071 33086 30034
RF10 White Driving 07410 - - 34071 33086 30034
RF18 Yellow Fog 12-07218 - - 34071 33086 30034
RF18 White Fog 07018 - - 34071 33086 30034
RF18 White Hybrid 16-07118 - - 34071 33086 30034
RF18 White Driving 07418 - - 34071 33086 30034
LED DRL Lights Kit Single Replacement Bulb Wiring Harness Relay Switch
DR205 9205 - - - - -
DR305 9305
- - - -
Deno 2 9150 - - 34020 - -
Deno 3 Rear Fog - - - - - -
Deno 6 9156 - - 34020 - -







HID Lamps Single Lamps Single Lens Replacement Bulb Wiring Harness Relay Switch
RS400 Driving 8004 38004 19993 34035 33260 30036
RS600 Driving 8006 38006 19993 34035 33260 30036
RS800 Driving 8008 38008 19999 34035 33260 30036

  • Two lamps
  • Wiring harness
  • Relay
  • Switch
  • Installation Instructions

Overall Customer Rating of 4 Reviews:

Nice bumper fit

Rating:
Pros:
Cons:

These lights fit nicely in my toyota tacoma aftermarket bumper. The yellow color cuts through the rain and fog plus the yellow/bluish lens color looks really cool. While not cheap, you get what you pay for - easy to install and quality wiring harness


Colorado

I can see!

Rating:
Pros:
  • Well%20Made
Cons:
  • Price
Great for rain/snow visibility and regular conditions.

Texas

510 Ion Crystal Fog

Rating:
Pros:
  • sharp%20contrast%20/%20visibility
Cons:
  • halogen%20bulb%20life
This is by far the best halogen fog lamp I have ever used on my trucks. This lamp makes a crisp clear contrast at night and in poor weather conditions. I replace my stock lamps with these - housing and all - wire the stock switch to the relay - it is worth the effort.

Winchester, VA

DOT stamp

Rating:
Pros:
Cons:
These fog lamps were installed on my 2008 Nissan Frontier and then failed VA inspection as they do not indicate they are DOT certified.



They did work well while installed but I have had to remove them.;
