• PIAA's Xtra Technology produces more light with stock power draw
  • PIAAs Proprietary ATP Technology gives the driver long reach with a wider beam
  • The Ultimate For Off Road Lighting
  • H3 85W=135W Xtreme White Halogen Bulb
  • Beam has the Perfect combination of height, width and distance
Price: $369.00

Quantity:
Availability: In Stock
Usually ships In 1 Business Day

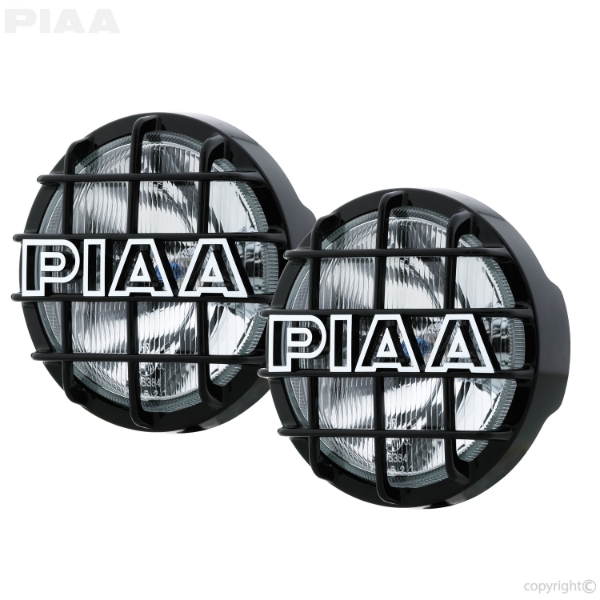

520 SMR Driving XTreme White Plus Halogen Lamp Kit


The PIAA 520 ATP (All-Terrain Pattern) is powered by PIAA's proprietary ATP technology that delivers a beam with the perfect combination of height, width and distance. This light is designed with a 12-volt Xtreme white H3 85-watt comparable 135-watt bulb.



The ultimate off road pattern, PIAA's ATP delivers a beam with the perfect combination of height, width, and distance. When PIAA came out with the off-road oriented 510 ATP the response was

overwhelming. However some riders felt they could use a bigger light

with more power and the same proprietary ATP (All-Terrain Pattern)

Technology. It provides a pattern much better for off-road use than a

standard fog or driving light. The 520 ATP can also be used as a long

range driving light with the benefits of illuminating the sides of the

road. This light is perfect for your truck and SUV and is quickly becoming popular

among off-road racers as well. The rotatable lens and trim

ring allows the lights to mount up or down.


REPLACEMENT PARTS





Halogen Lamps single lamp single lens bulb wiring harness relay switch
004XT Driving 412 30412 15213 34085 33086 30034
2000 Series Ion Crystal Fog 2011 32010 13555 34085 33086 30034
2000 Series Xtreme White Fog 2010 32010 15213 34085 33086 30034
2100 Series Xtreme White Driving 2112 32112 15213 34085 33086 30034
2100 Series Xtreme White Fog 2110 32110 15213 34085 33086 30034
40 Series Driving 4012 34012 13055 34085 33086 30034
410 Series Driving 4102 34102 10915 34087 33086 30034
510 Ion Crystal Fog 5101 35101 13455 34085 33086 30034
510 Super White Driving 5104 35104 13910 34085 33086 30034
510 Xtreme White SMR Fog 5110 35110 15213 34085 33086 30034
510 Xtreme White SMR Driving 5112 35112 15213 34085 33086 30034
510 Intense White ATP 5106 35106 10933 34085 33086 30034
520 Ion Crystal Fog Chrome 5201 35201 13085 34260 33260 30034
520 Ion Crystal Driving Chrome 5203 35203 13085 34260 33260 30034
520 Ion Crystal Fog Black 5211 35201 13085 34260 33260 30034
520 Ion Crystal Driving Black 5213 35203 13085 34260 33260 30034
520 Xtreme White SMR Driving Chrome 5204 35202 15213 34260 33260 30034
520 Xtreme White SMR Driving Black
5214
35202
15213
34260
33260
30034
520 Xtreme White ATP Black 5216 35206 15286 34260 33260 30034
525 Series Twin Beam 5258 35258 14561 34400 33086 30035
540 Ion Crystal Fog 5401 35401 13455 34085 33086 30034
540 Xtreme White Driving 5402 35402 15213 34085 33086 30034
580 Xtreme White Driving 5802 38302 15286 34260 33260 30034
RS800 Twin Beam Shock Lamp 8018 38018 14561 34088 33260 30035
1500 Series Back-up 1520 31520 13055 34046 33046 30022
2000 Series back up 2020 32010 13055 34046 33046 30022
LED Lamps single lamp single lens bulb wiring harness relay switch
530 LED Fog 5300 - - 34070 - -
530 LED Driving 5302 - - 34070 - -
570 LED Driving 5702 - - 34071 33086 30034
DR205 9205 - - - - -
DR305 9305
- - - -
Deno 2 9150 - - 34020 - -
Deno 3 Rear Fog - - - - - -
Deno 6 9156 - - 34020 - -







HID Lamps single lamps single lens bulb wiring harness relay switch
RS400 Driving 8004 38004 19993 34035 33260 30036
RS600 Driving 8006 38006 19993 34035 33260 30036
RS800 Driving 8008 38008 19999 34035 33260 30036

  • Two lamps
  • Wiring harness
  • Relay
  • Switch
  • Installation Instructions
